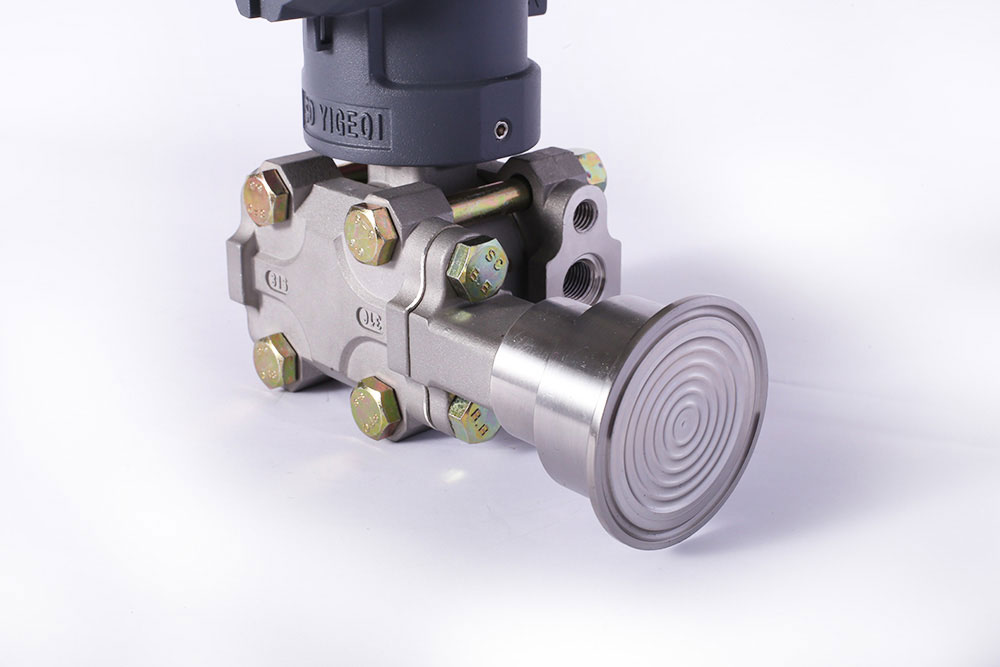

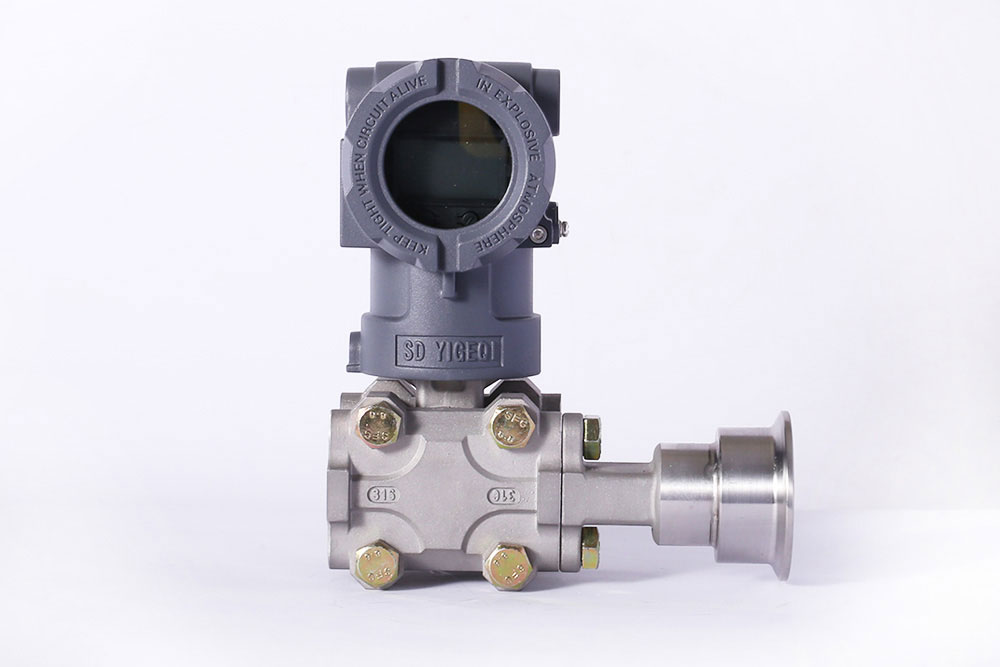

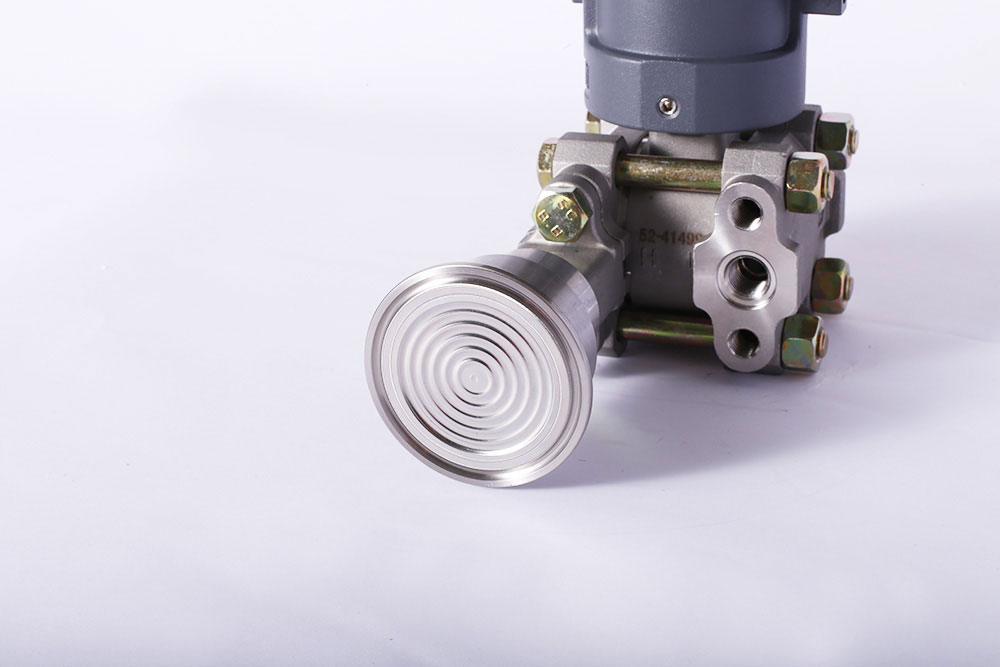

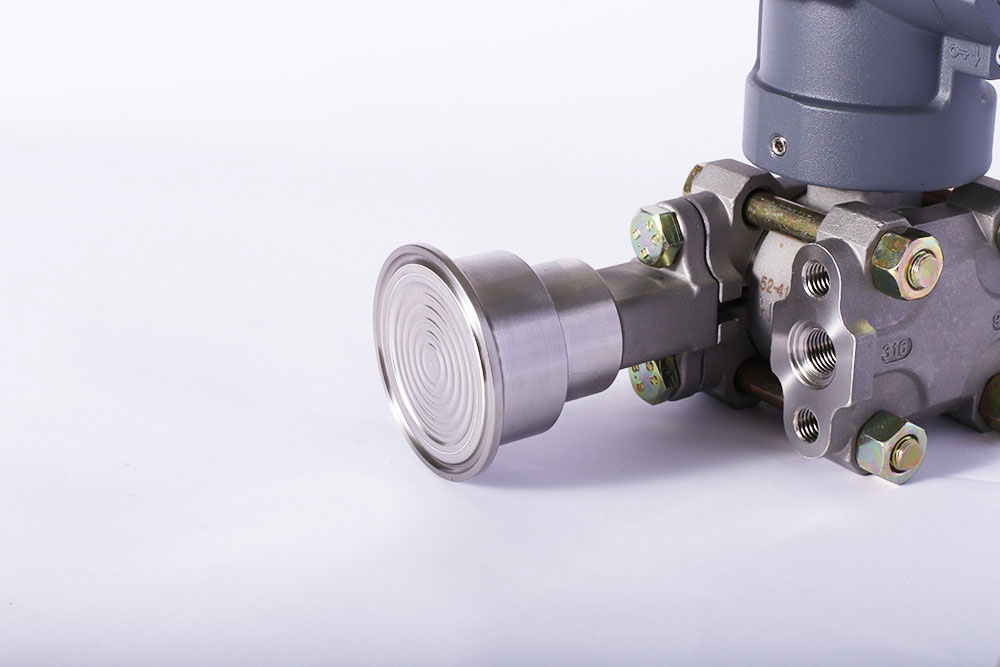

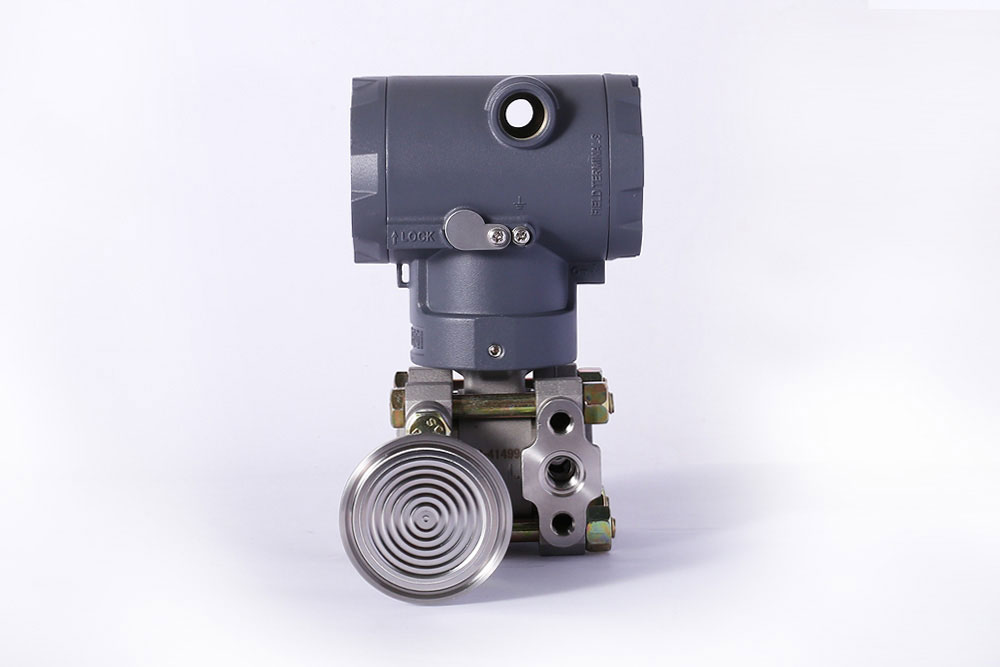

YGQ7961YF single flange sanitary liquid level transmitter
The liquid level transmitter of YGQ7961YF Series is designed independently and connected based on the technology of the YGQ7961D differential pressure transmitter. The measurement diaphragm capsule can be installed on its sides, and it is suitable for a variety of measuring material. It can be installed easily, measure accurately, response quickly, and can achieve accurate and stable measurement of various media in multiple occasions. When the optional remote diaphragm capsule is installed at the low voltage side, the liquid level of sealed cans can be measured accurately.
Output:4~20mA, with HART protocol communication function
Measurement range: 100~10000mmH2O
Accuracy: The measurement accuracy is up to 0.2%
Environment temperature: -30~60°C
Liquid sealed: Silicone oil, fluorine oil, glycol, etc
Flange type:Flat flange, convex flange, mixed type and sanitary clamp
Flange standard:HG20592 、HG20615
Liquid receiving material:316LSS, Hastelloy alloy C-276 and tantalum, etc
Passed EX DII CT6 explosion proof certification and SIL3 level safety certification, CE certification, etc.
01. We take quality seriously
48 advanced techniques, product performance beyond the national standards, through the European Union CE certification, and with the factory inspection report.
02. Strength makes quality

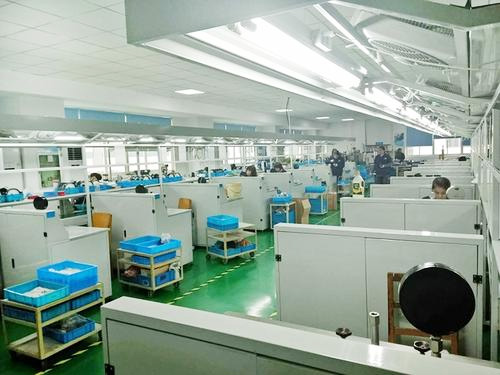

The high-tech enterprise integrating R&D, production, sales and engineering supporting. Professional production plant of 5,000 square meters with international advanced production equipment and production lines.
