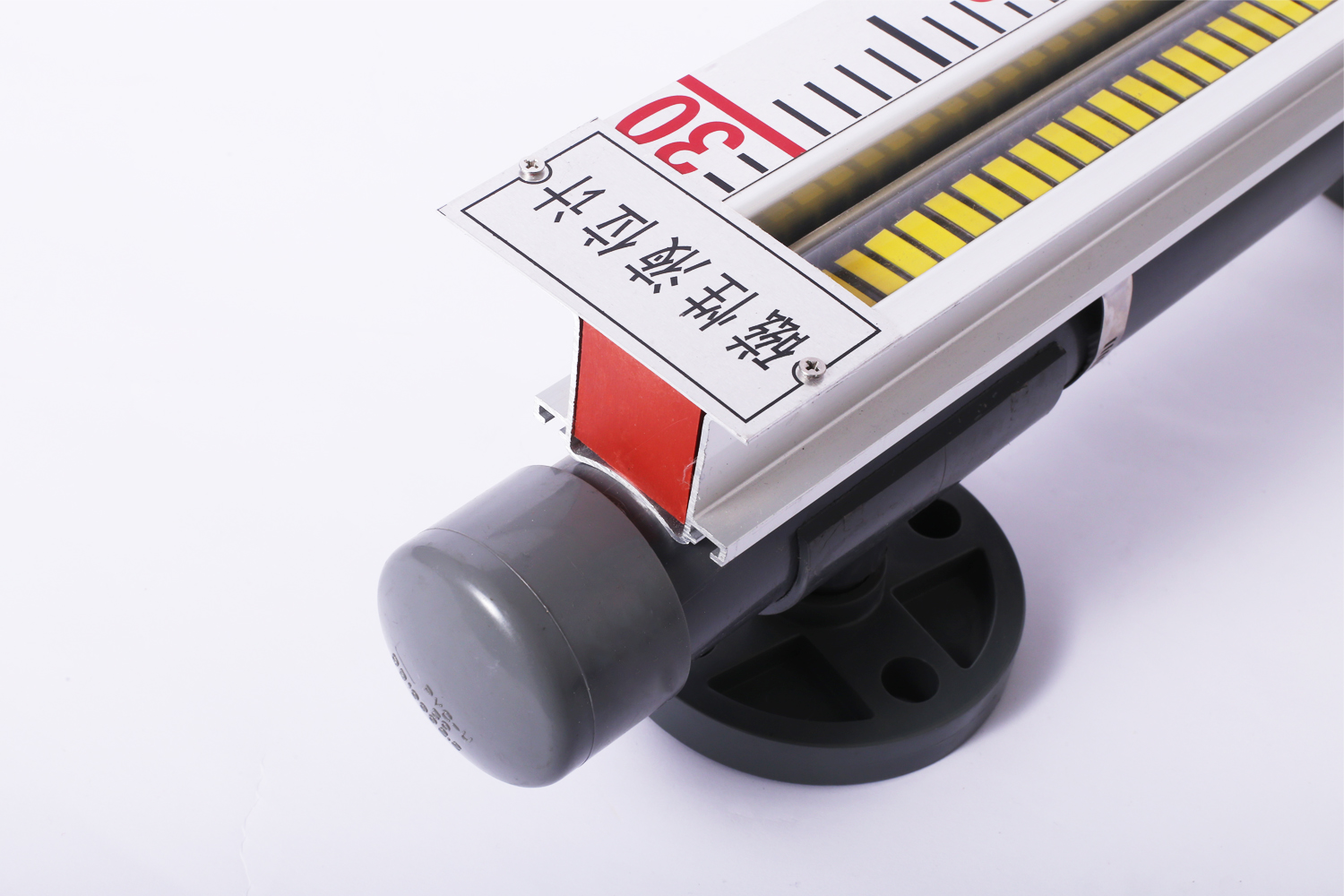

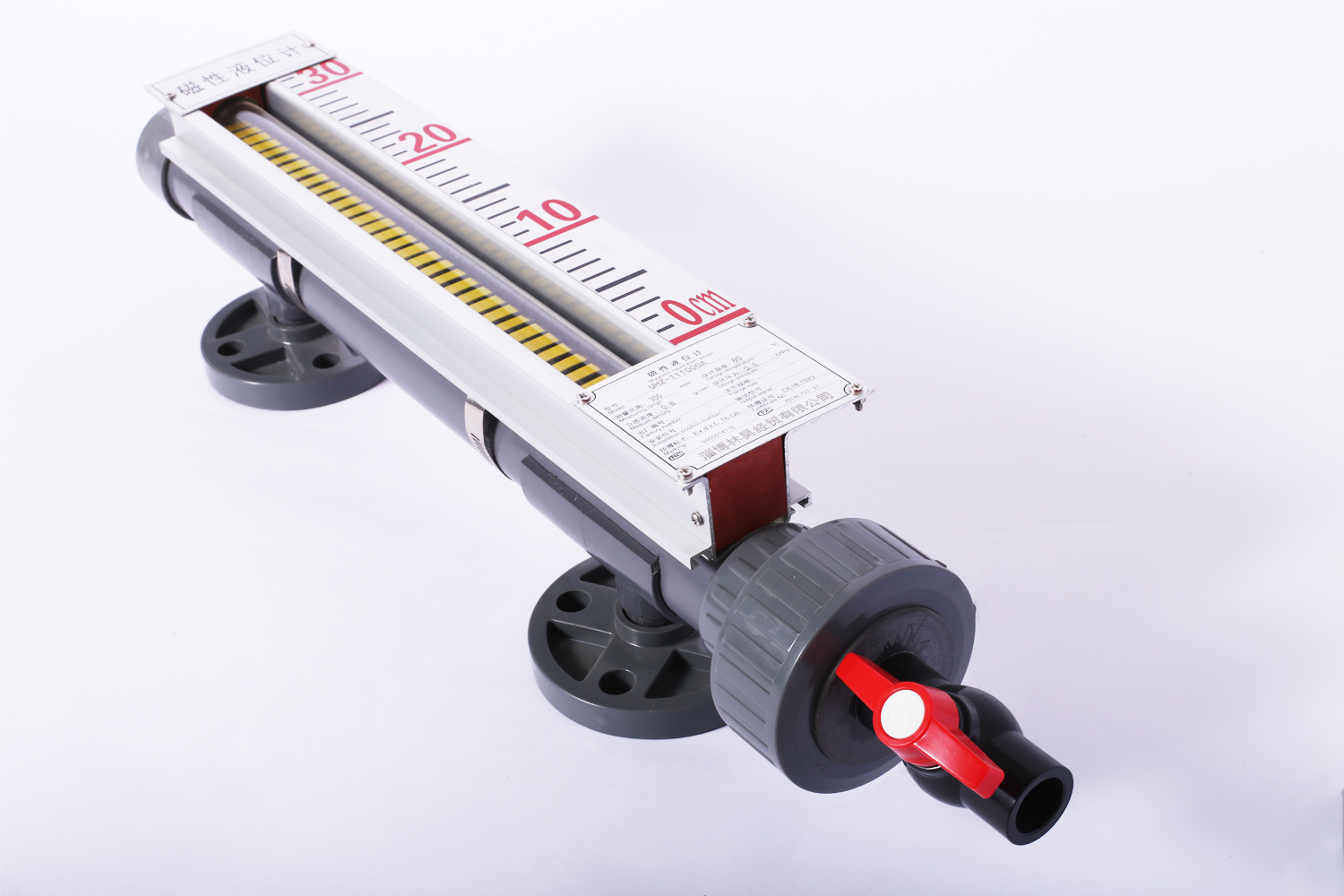

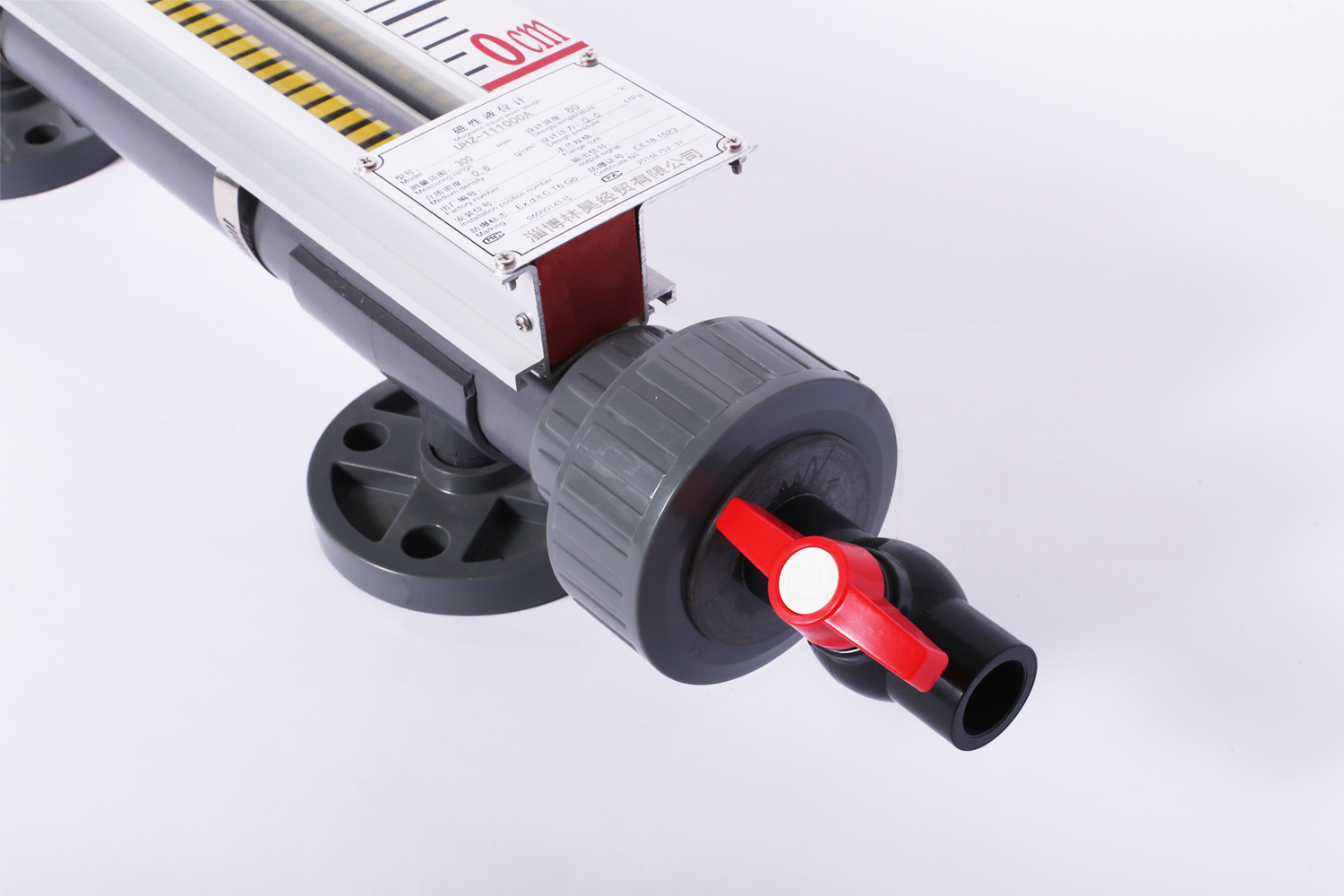

YGQ Magnetic Level Indicator
YGQ Magnetic Level Indicator can be used for medium level detection of various towers, tanks, tanks, spherical vessels, boilers and other equipment. It can achieve high sealing, leakage prevention and suitable for high temperature, high pressure, and corrosion resistant occasions. It compensates for the defects such as poor clarity of the glass plate (tube) level indicator, easy to break, etc., and there is no blind zone in the whole process measurement, and the display is clear and the measurement range is large. The parts and components of the Magnetic Flap Level Gauge are made of 1Cr18Ni9Ti, 304, 316L, PTFE (polytetrafluoroethylene), PVC, PP and other imported components, and have excellent reliability and corrosion resistance.
The Magnetic Flap Liquid Level Gauge is developed based on the principle of buoyancy and magnetic coupling. When the liquid in the measured container rises and falls, the Magnetic Float in the body of the liquid level gauge rises and falls, and the permanent magnetic steel in the float is magnetically coupled. Passed to the magnetic flip column indicator, driving the red and white flip column to flip 180 °, when the liquid level rises, the flip column changes from white to red, when the liquid level drops, the flip column changes from red to white, and the indicator's red and white junction Where is the actual height of the liquid level inside the container, so that a clear indication of the liquid level is achieved.
Simple structure and easy installation
Complete detection functions
Large measuring range
Intuitive indication of novel readings
Corrosion and explosion proof
Optional 4-20mA output
01. We Take Quality Seriously
48 advanced techniques, product performance beyond the national standards, through the European Union CE certification, and with the factory inspection report.
02. Strength Makes Quality
The high-tech enterprise integrating R&D, production, sales and engineering supporting. Professional production plant of 5,000 square meters with international advanced production equipment and production lines.
03. Professional Equipment And Top Talent
At the time of introducing professional technical personnel, the company invested nearly 10 million Yuan in purchasing CNC machine tools, laser welding machine and other advanced CNC special equipment manufactured in Japan, to ensure high-quality products.
04. Reliable Product Performance
Professional technical personnel and advanced equipment as well as systematic management have created reliable products far beyond the industry performance. In addition to the production of a variety of specifications of the series of products, the company also undertakes a variety of non-standard products and system solutions.
05. Excellent Public Praise And Good Reputation
Excellent products, good performance, perfect after-sale and good reputation are the foundation to build the enterprise reputation.We solemnly promise:The quality of our products is absolutely guaranteed, so that you can rest assured to buy, and be comfortable to use.
06. Professional Service Team Let You Have No Worries
Since its establishment, the company has been in line with the enterprise tenet of "market-oriented, quality for survival, reputation for development and management for efficiency". Customer satisfaction is our eternal pursuit.
